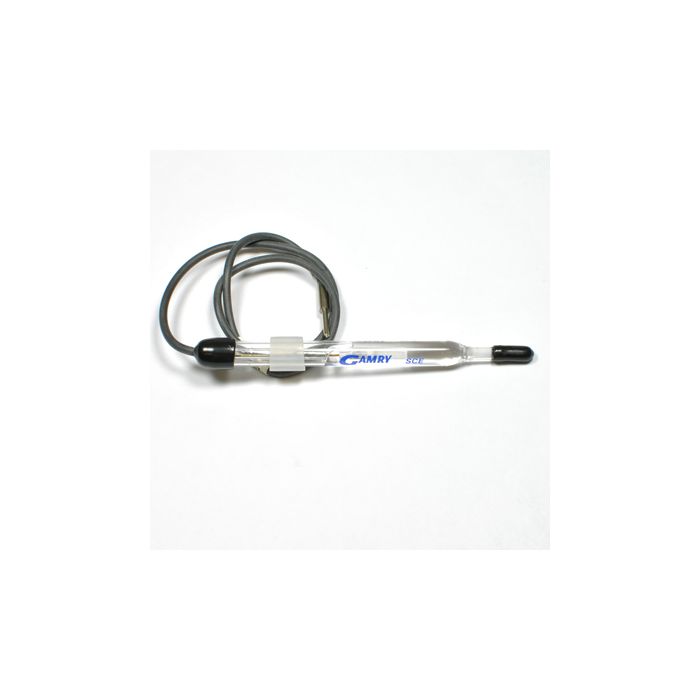

Saturated Calomel Reference Electrode

In stock (60 available)
SKU
930-00003

You must be logged in to purchase or get a quote on this product.

Saturated Calomel Electrode (SCE), a reference electrode based on the reaction between elemental mercury and mercury(I) chloride. Filled with saturated potassium chloride (36% w/w). Electrode potential is 244 mV vs. Normal Hydrogen Electrode (NHE)

  • Laboratory grade borosilicate glass shaft
  • Electroporous KT Glass frit/junction
  • Reference electrode body length is 11 cm
  • Main body diameter is 9 mm, and is 4 mm at the glass junction
  • Cable connection is 2 mm phone jack (plugs directly into Gamry white reference cable)
  • Includes Safety Data Sheet and black protective cover for glass frit

*Note this SCE uses Saturated Potassium Chloride Filling Solution  #955-00002

Overview of reference electrodes
Checking the impedance of your reference electrode
Care of reference electrode and changing porous glass frits
Convert Potentials to Another Reference Electrode
